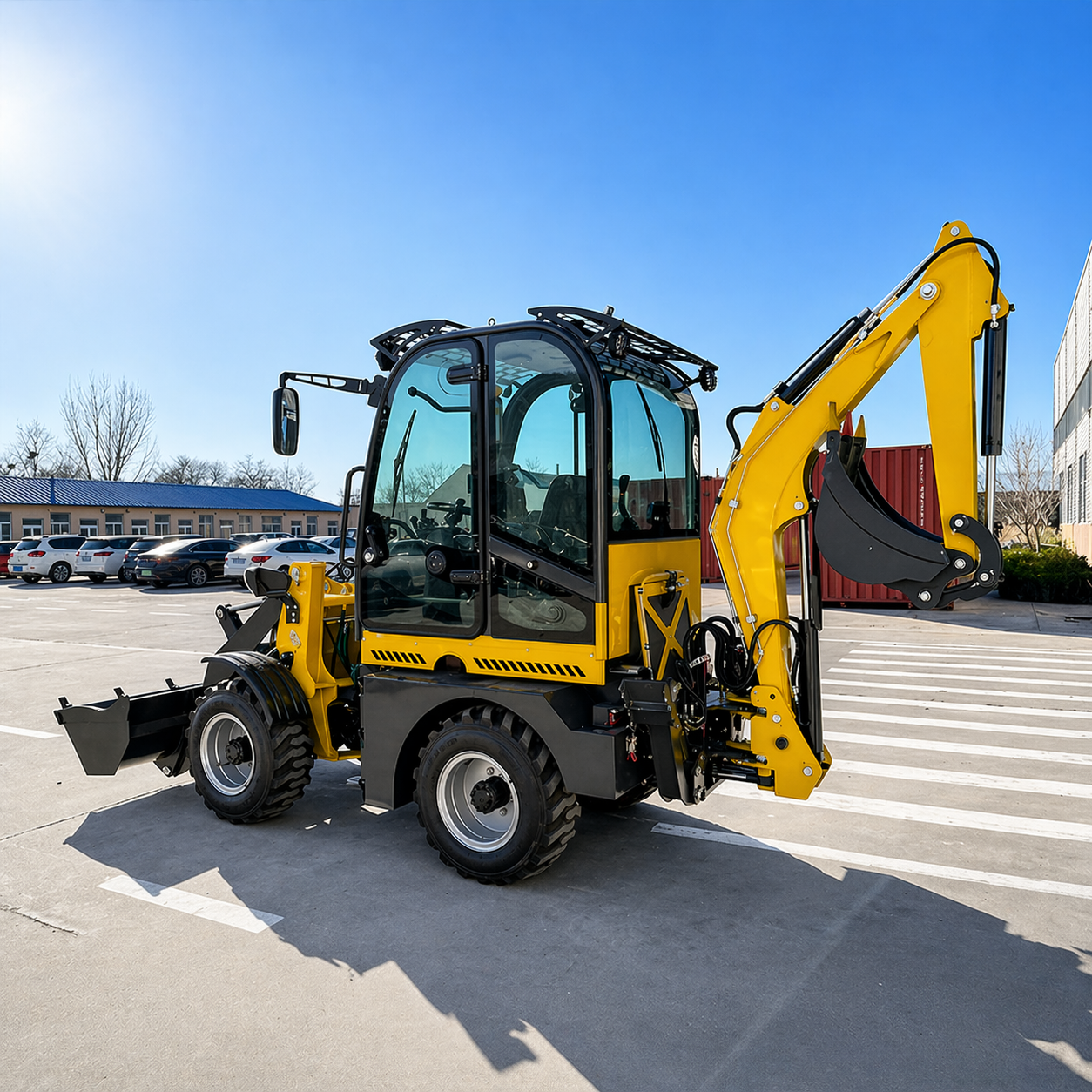

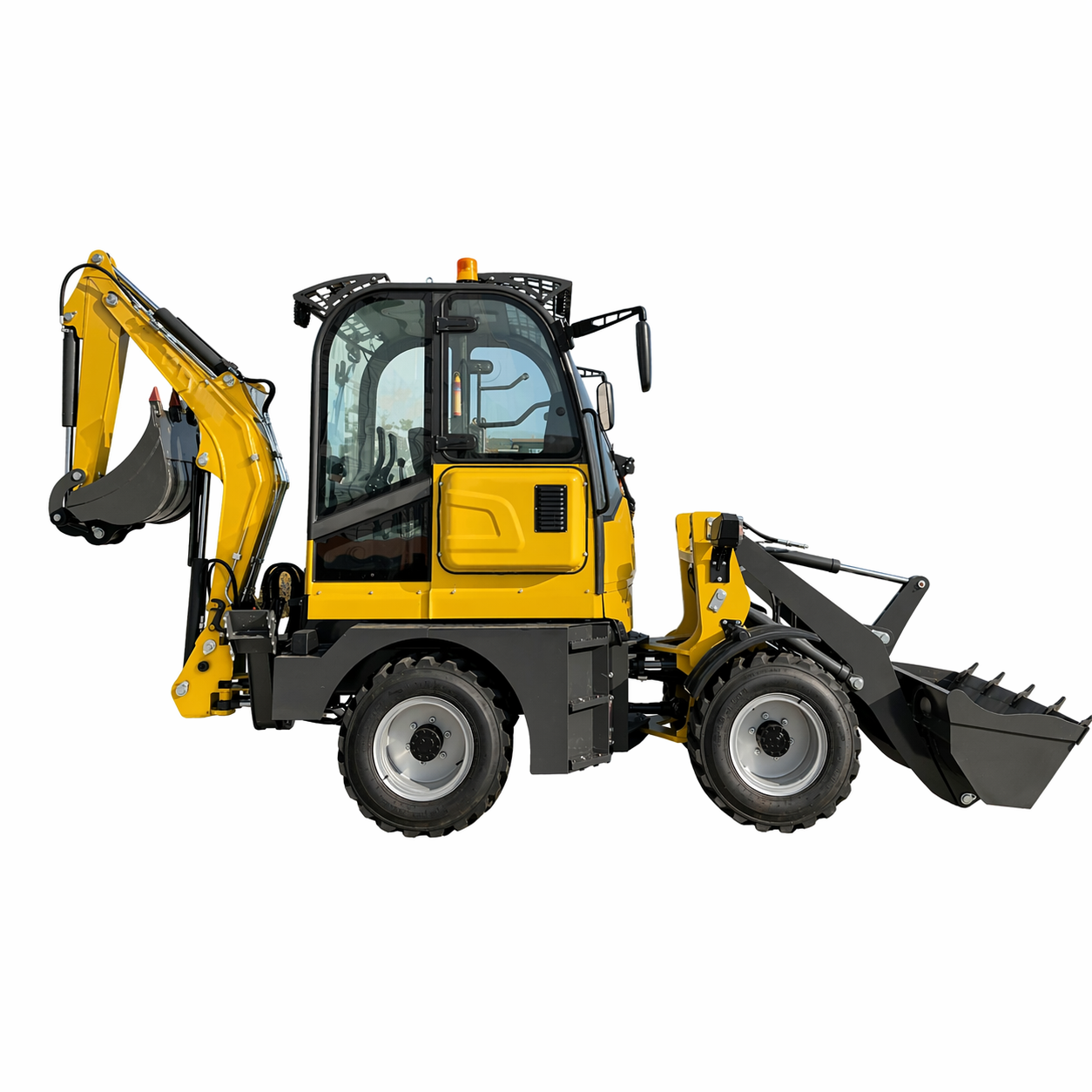

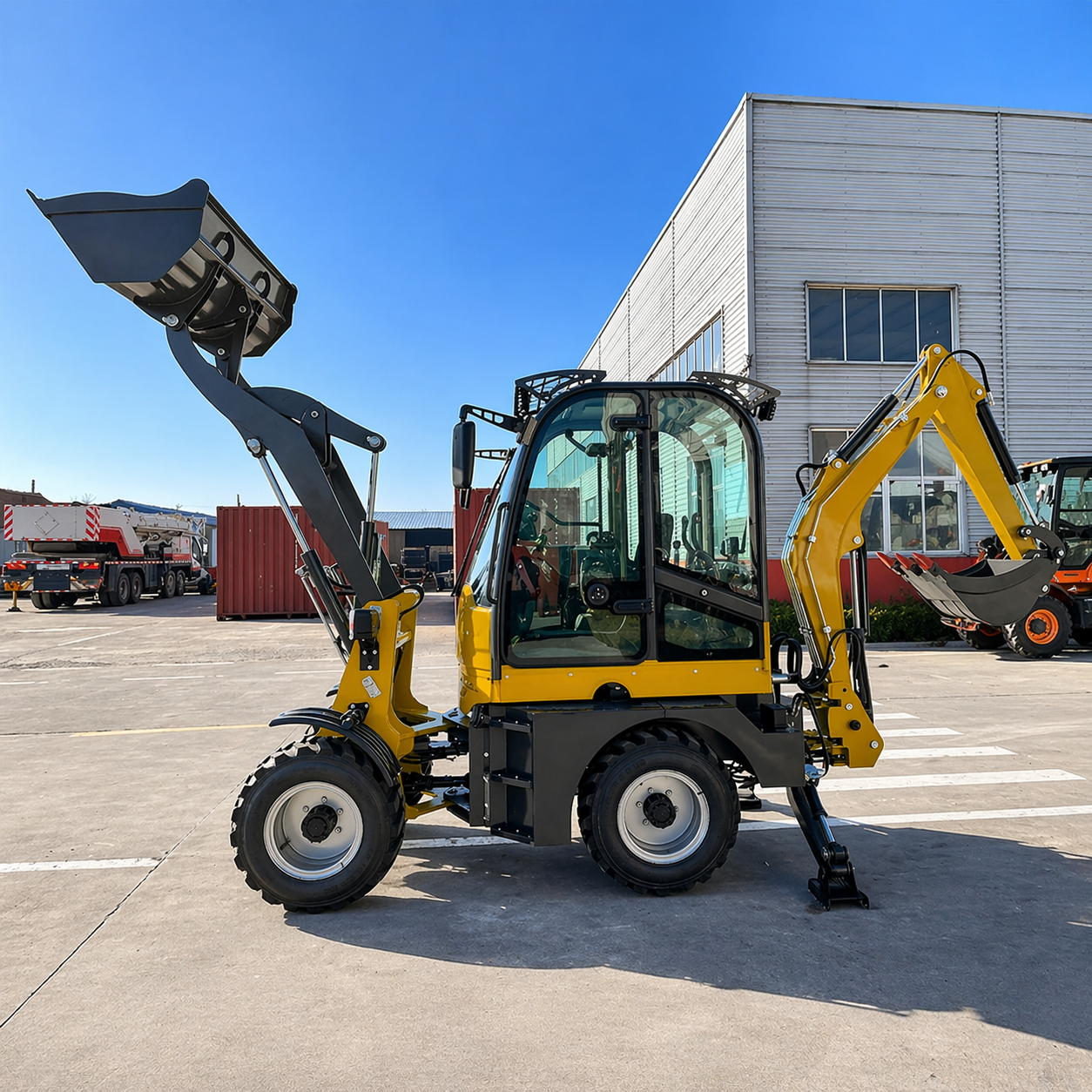

WZ1520 Mini Backhoe Loader - 1 Ton

Compact and versatile equipment for light excavation work, loading, urban maintenance, agriculture, small construction projects, and interventions in confined spaces.

A practical solution for companies seeking mobility, low consumption, simple operation, and the ability to perform various tasks with a single piece of equipment.

Key Information

• Model: WZ15-20
• Type: mini backhoe loader
• Rated load: 1000 kg
• Rear bucket capacity: 0.12 m³
• Front loader capacity: 0.6 m³
• Operating weight: 2800 kg

Engine and Transmission

• Engine model: Yunnei 490
• Rated power: 37 kW
• Rated speed: 2400 rpm
• Number of cylinders / bore: 4-90
• Drive type: 4-wheel drive
• Transmission type: hydrodynamic speed change

System and Capacities

• System pressure: 16 MPa
• Diesel tank capacity: 47.5 L
• Hydraulic oil tank capacity: 47.5 L
• Service brake: disc brake with caliper and pneumatic oil
• Parking brake: manual
• Rotation angle: 180°
• Steering angle: 38°
• Maximum speed: 25 km/h
• Maximum climbing capacity: 25°

Working Performance

• Maximum lifting height: 3100 mm
• Maximum front discharge height: 2430 mm
• Loader width: 1600 mm
• Boom length: 1860 mm
• Maximum digging radius: 3500 mm
• Maximum digging depth: 2350 mm
• Maximum digging height: 3360 mm
• Backhoe discharge height: 2280 mm
• Rear bucket width: 475 mm

Dimensions

• Overall dimensions: 5200 × 1600 × 2560 mm
• Minimum ground clearance: 220 mm
• Wheelbase: 1120 mm
• Minimum turning radius: 2310 mm

Advantages and Features

• Comfortable cabin with a practical and easy-to-operate driver's station
• Reinforced and wear-resistant tires for greater durability
• Sliding design of the excavation structure, allowing side digging, folding, and free sliding
• Good capacity bucket with reinforced teeth and protective plates for greater wear resistance
• Compact equipment suitable for small construction projects, maintenance, and multifunctional tasks
