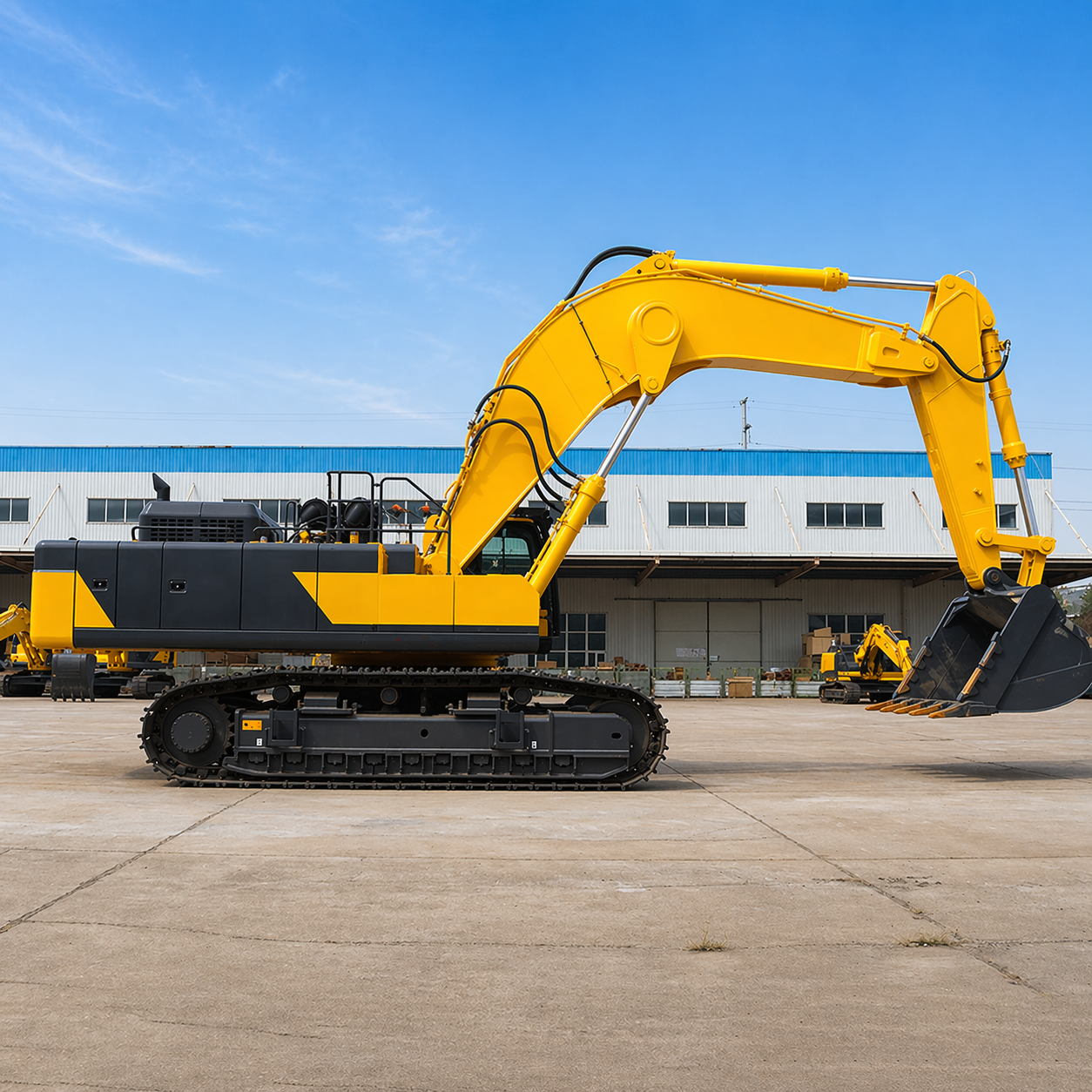

LTE800 Crawler Excavator – 77 Tonnes

Large equipment for heavy excavation, mining, quarries, and demanding operations in high-load industrial environments.

Complete service: import, on-site delivery, and technical support. Recommended solution for companies seeking high excavation capacity, robustness, stability, and continuous performance in intensive work.

Key Information

• Model: LTE800
• Total weight: 77200 kg
• Bucket capacity: 4 m³
• Type: crawler mining excavator

Engine and Hydraulic System

• Engine model: Cummins QSX15
• Rated power: 336 kW / 2100 r/min
• Working pressure: 31.4 (34.3) MPa
• Max flow rate: 490 × 2 L/min
• Hydraulic pump model: K3V280DH
• Hydraulic tank capacity: 335 L

Performance

• Travel speed (high/low): 4.8 / 3.0 km/h
• Swing speed: 7.2 r/min
• Gradeability: 35°
• Arm digging force: 300 / 328 kN
• Traction force: 553 kN
• Ground pressure: 100 kPa

Working Range

• Max digging height: 11762 mm
• Max dumping height: 7642 mm
• Max digging depth: 6868 mm
• Max digging distance: 11762 mm
• Max digging distance at ground level: 12064 mm
• Min swing radius: 5070 mm
• Max height at min swing radius: 9890 mm

Dimensions

• Overall length: 13104 mm
• Overall width: 4256 mm
• Overall height (boom top): 5269 mm
• Overall height (cab top): 3530 mm
• Transport length in contact with the ground: 7394 mm
• Minimum ground clearance: 898 mm
• Counterweight ground clearance: 1600 mm
• Rear swing radius: 4500 mm
• Distance from swing center to rear: 4500 mm
• Counterweight height: 2900 mm
• Track contact length with ground: 4720 mm
• Track length: 5957 mm
• Track gauge: 2750 / 3350 mm
• Overall track width: 3400 / 4000 mm
• Track shoe width: 650 mm
• Turntable width: 3995 mm
• Tooth thickness: 50 mm
• Arm length: 3020 mm
• Boom length: 7100 mm

Technical data may vary depending on the configuration.
