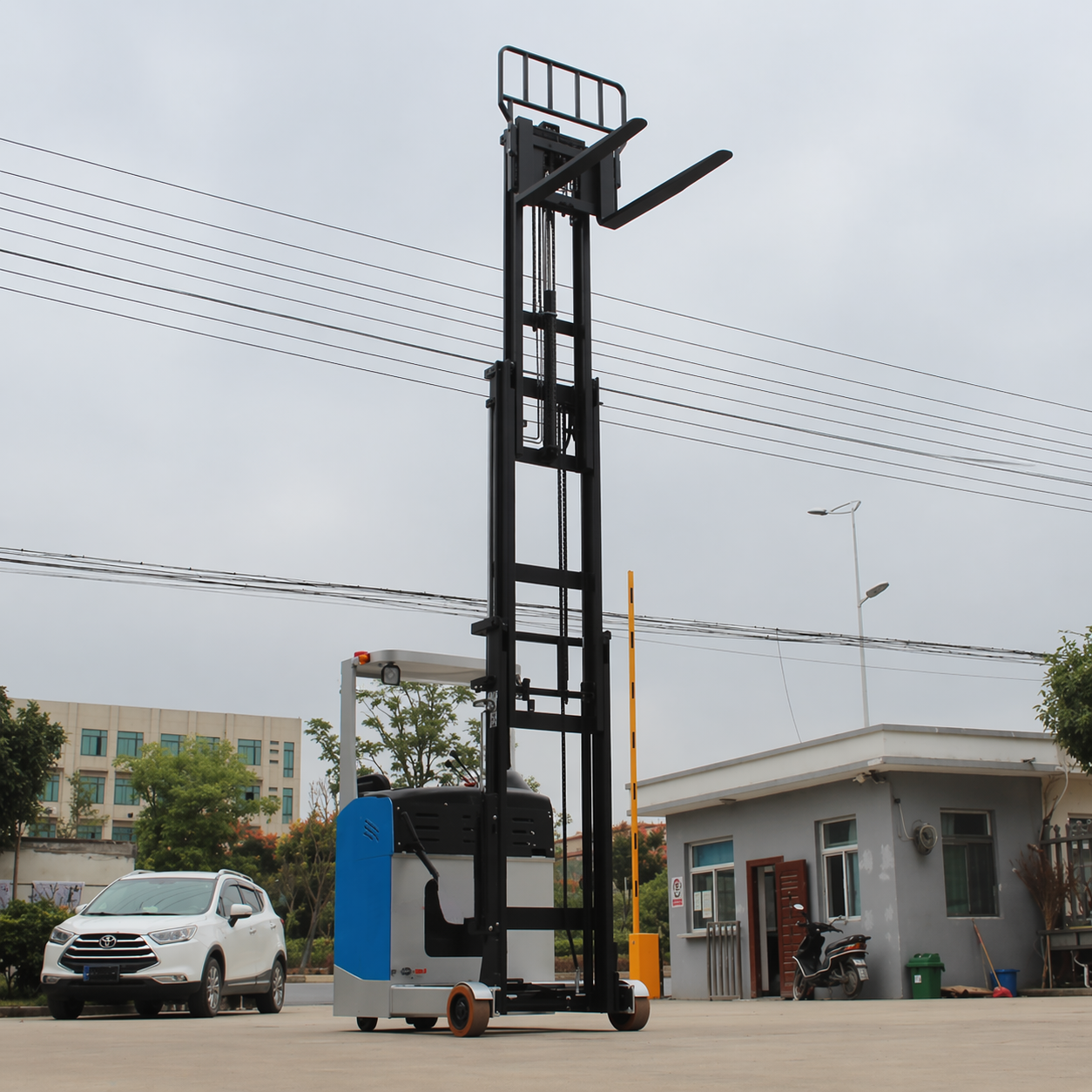

The FRB12/15 is a sit-on electric reach truck, designed for logistics operations that require greater operator comfort, high efficiency, and precise movement in narrow aisles.
With a load capacity of 1200 kg to 1500 kg and a lift height of up to 3000 mm, this equipment is ideal for warehouses, distribution centers, and intensive storage operations.
Key advantages
Load capacity: 1200 kg / 1500 kg
Maximum lift height: 3000 mm
Reach distance: 555 mm
Compact turning radius: 1670 mm
Full electric system
Powerful and efficient AC motor
EPS steering with lower energy consumption
CURTIS controller with self-diagnosis
Ideal for narrow aisles and high-density warehouses
Technical specifications
Model: FRB12 / FRB15
Capacity: 1200 kg / 1500 kg
Load center: 500 mm
Mast lowered height: 2100 mm
Overhead guard height: 2280 mm
Overall width: 1090 mm
Maximum speed: 4-5 km/h
Maximum gradient: 6-8%
Battery: 24V / 280Ah
Smart charger: 24V / 40A
The price depends on the configuration, accessories, and delivery conditions.
Technical data may vary depending on the model and application. The choice should be made based on the specific needs of the project.
We provide technical support and spare parts to ensure the continuous operation of the equipment.
