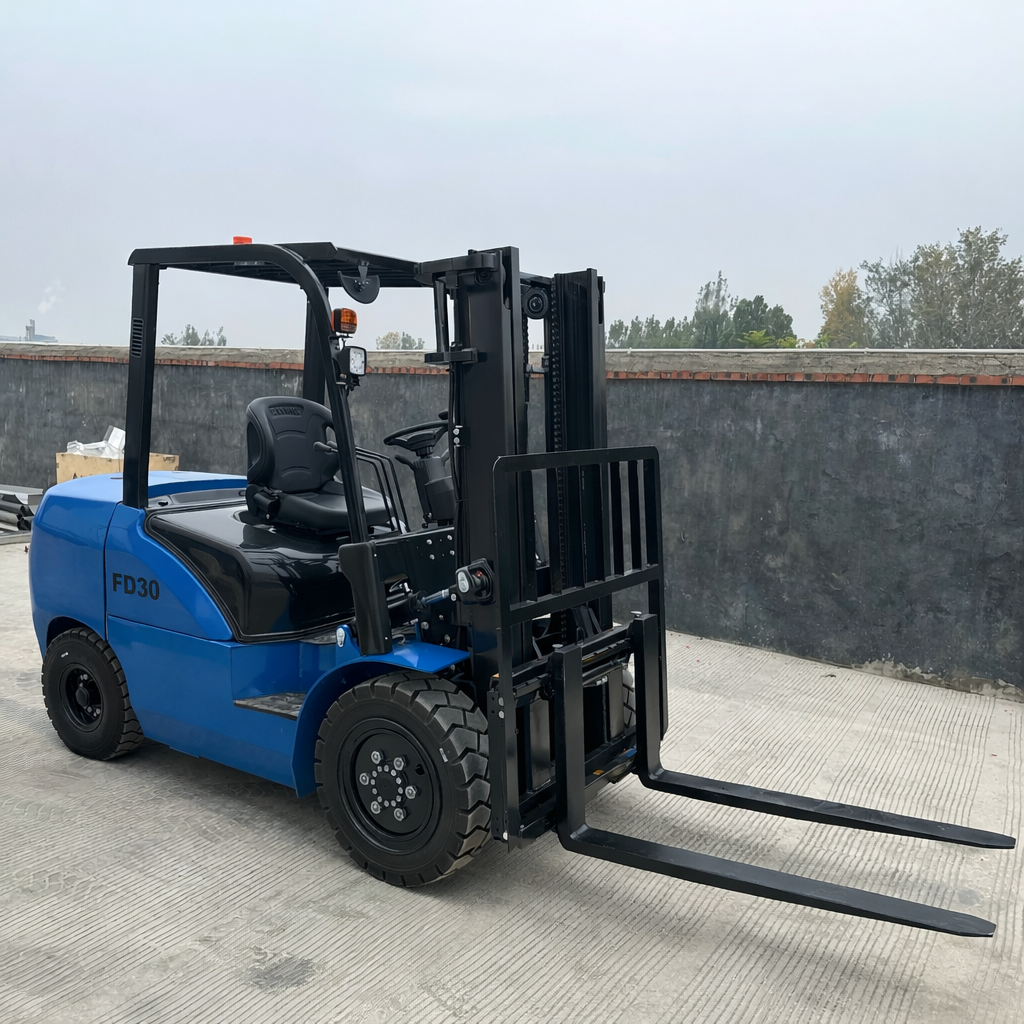

Diesel Forklift FD30 – 3 Tonnes

Professional solution for logistics, warehousing, and industrial operations in Angola.

Complete service in Luanda: import, on-site delivery, and technical support. Ideal for companies seeking efficiency, reliability, and controlled costs.

Key Information

• Model: FD30
• Load capacity: 3000 kg
• Load centre: 500 mm
• Standard maximum lift height: 3000 mm
• Fuel: Diesel
• Battery: 12V / 80Ah

Performance

• Maximum lifting speed: up to 420 mm/s
• Maximum travel speed: 15 km/h
• Minimum turning radius: 2520 mm
• Maximum gradability: 15%

Dimensions

• Operating weight: 4500 kg
• Length to fork face (without forks): 2840 mm
• Width: 1240 mm
• Lowered mast height: 1945 mm
• Maximum mast height: 4200 mm
• Overhead guard height: 2160 mm

Forks and Structure

• Fork dimensions: 1220 × 122 × 50 mm
• Mast tilt (forward/backward): 6° / 12°
• Front overhang: 460 mm
• Rear overhang: 480 mm
• Wheelbase: 1750 mm

Tyres

• Front tyres: 28x9-15-14PR
• Rear tyres: 6.50-10-10PR

Engine and System

• Engine: Xinchai 490BPG200
• Power: 40 kW at 2650 rpm
• Maximum torque: 160 N·m at 1800–2000 rpm
• Number of cylinders: 4
• Displacement: 2.67 L
• Transmission: Hydraulic

Technical data may vary depending on the configuration.

Price depends on configuration and delivery conditions.
