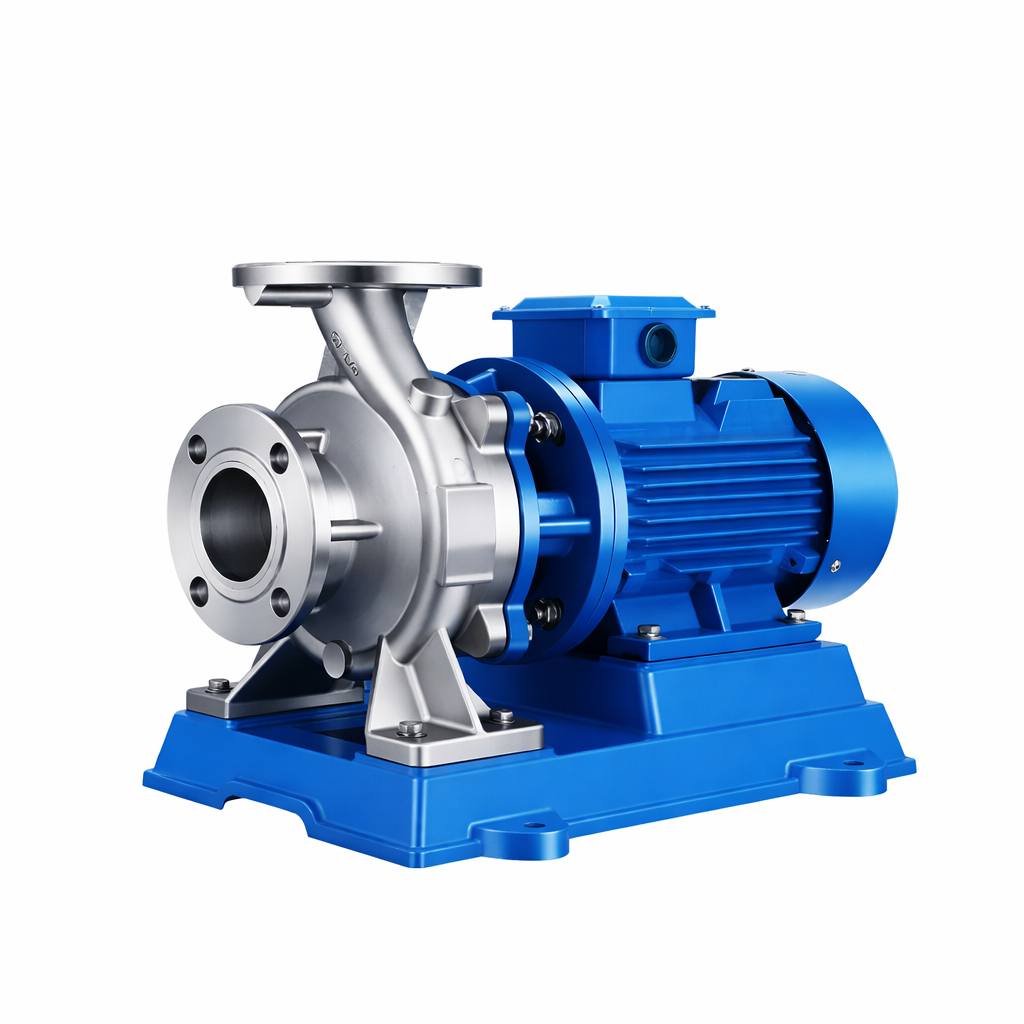

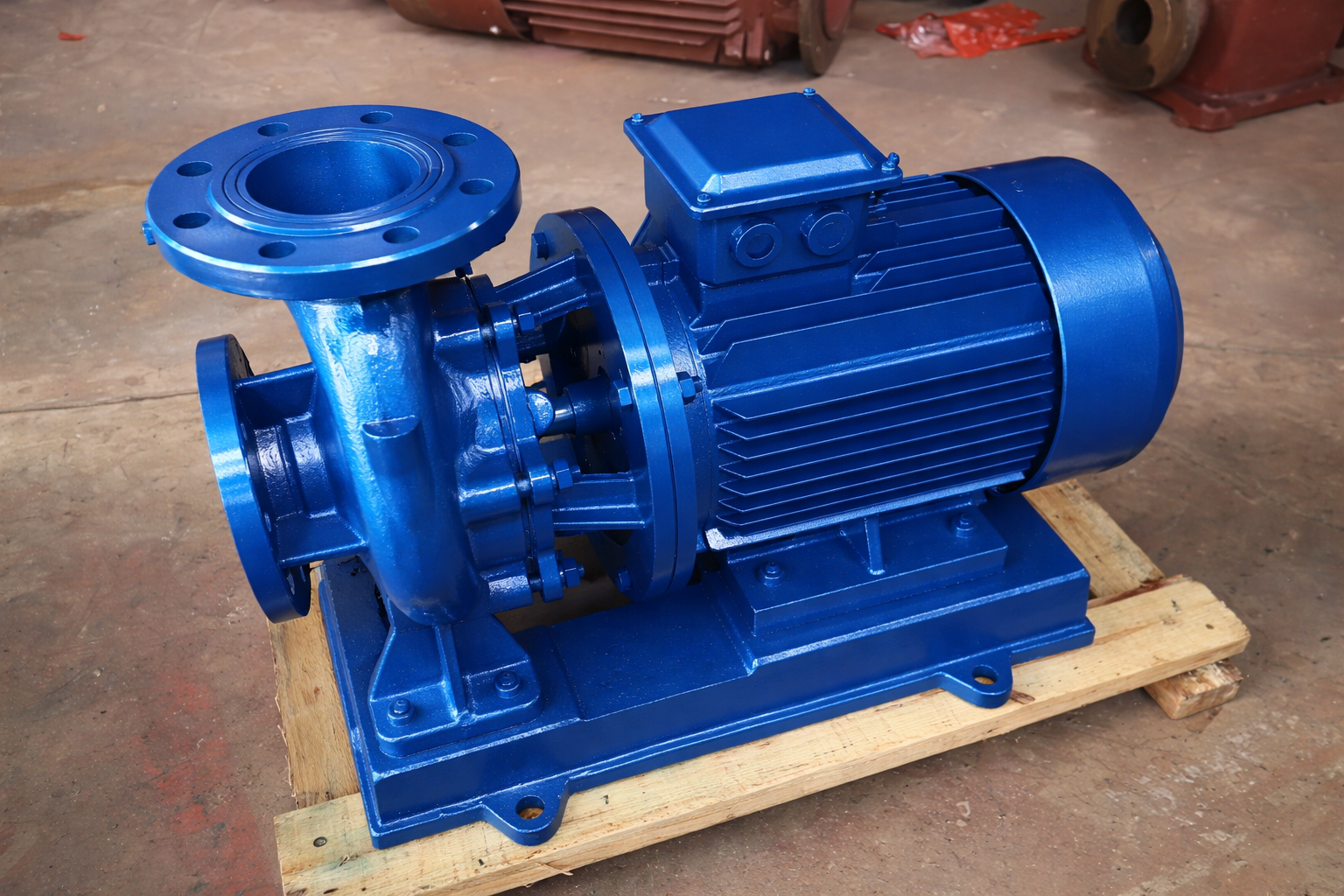

Pressurization Pump for Industrial Piping

The industrial pipeline booster pump was developed for water supply systems, pressurization, circulation, and continuous fluid transport in industrial, commercial, and municipal applications. Its robust design allows for stable operation, good hydraulic performance, and efficient integration into distribution and pressure boosting systems.

This equipment is suitable for pumping clean water and other liquids with similar physical and chemical properties. It is a suitable solution for water distribution networks, industrial utilities, building systems, irrigation, HVAC, and other applications that require constant pressure and reliable operation.

Main advantages

• High efficiency for continuous operation
• Compact and reliable structure
• Good flow and pressure stability
• Relatively simple maintenance
• Versatile application in industrial and supply systems

Applications

It can be used in municipal water systems, pressure boosting in buildings, water distribution in industrial facilities, water treatment solutions, irrigation, circulation in HVAC systems, and processes requiring stable fluid transport through pipelines.

Technical data

Based on the models visible in the manufacturer's table, this series is available with capacity from 1.5 to 1300 m³/h, head from 8 to 344 m, and efficiency from 25% to 83%.

The presented models operate with rotational speeds of 1450, 1480, 2800 or 2900 r/min, motor power from 0.18 to 160 kW, NPSH between 2 and 6 m, and approximate weight between 17 and 2070 kg, depending on the selected configuration.

Models visible in the table

Model	Capacity	Head	Motor
15-80	1.5 m³/h	8 m	0.18 kW
32-200	4.5 m³/h	50 m	3 kW
100-350	120 m³/h	142 m	90 kW
400-315	1300 m³/h	27 m	132 kW
500-315	1200 m³/h	32 m	160 kW

Other visible models include, among others, 20-110, 20-160, 25-110, 25-125, 25-160, 32-100, 40-200, 65-315, 80-250, 125-160, 150-200, 200-250, 250-400, 300-400, 350-400, 400-300, 500-300, and 350-315.

Maintenance and spare parts

The pump can be maintained by replacing wear components such as mechanical seals, bearings, shafts, impellers, and sealing elements. This facilitates preventive maintenance and contributes to a longer service life in demanding applications.

---
